SWIT PL-E90L 8:1 Bi-color Panel Light 90W Professional SMD-LED, V-Mount

SWIT PL-E90L 8:1 Bi-color Panel Light 90W Professional SMD-LED, V-Mount

The PL-E90L features SMD LEDs mounted on the inner edge of the frame. Thanks to SWIT's innovative 90° reflection plate with laser dots, the light produces a highly efficient, bright, soft and even beam that wraps around subjects. The side-mounted LEDs are so slim that the fixture measures just 21 mm thin, making it portable and ideal for use in the field.

The PL-E90L combines 90W 2700K LEDs and 90W 6500K LEDs, delivering a light output of 90W 2200 lux at 1 metre distance and a colour temperature range of 2700K to 6500K. The fixture supports 0 to 100% PWM digital dimming, with smooth and flicker-free operation.

The fixture has been tested and certified as "Exempt – No photobiological hazard" in accordance with the IEC 62471:2008 standard. This means there is no risk of ultraviolet radiation, high-energy blue light or flickering. In specific environments such as churches, museums and historic buildings, this fixture can effectively prevent discolouration and flaking of murals, helping to protect cultural heritage.

The PL-E90L uses high-quality surface-mount LEDs with a super-high Colour Rendering Index (CRI) of 99 and a TLCI of 99. Objects retain their original colours accurately under the light.

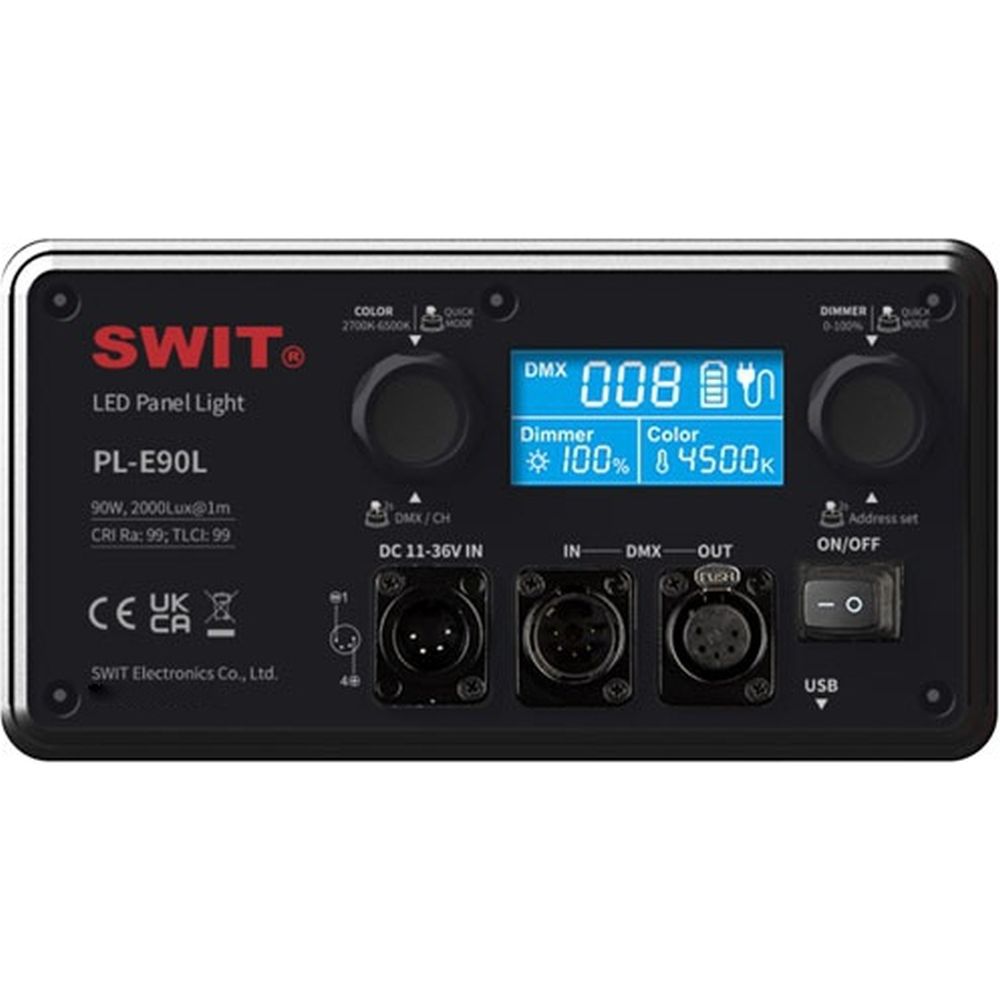

The rear control panel supports DMX512 input and output, a USB power output for a wireless DMX adapter, and a wide input voltage range of 11–36V DC. The LCD screen displays the dimmer level, colour temperature, DMX address and power status.

The PL-E90L features a tripod mount and is rotatable 360° and tiltable 180°. The PL-E90L comes equipped with two metal barn doors that can be easily removed with 4 screws.
